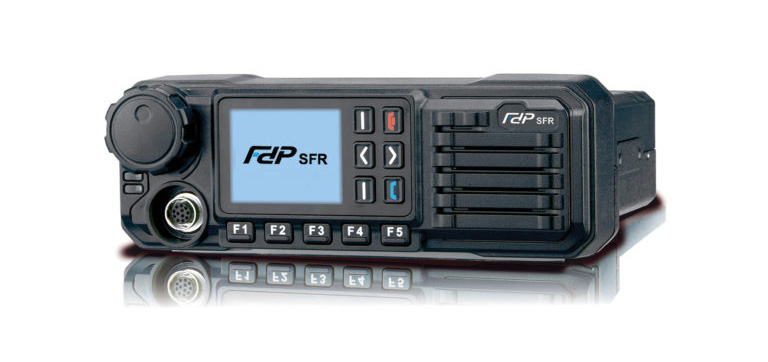

The FDP SFR (Single Frequency Repeater) DMR UHF Mobile

KeyWords:
LMRS Single Frequency License


...


It is not like a conventional Single Frequency Repeater (parrot repeater).  This SFR works a bit differently.  The FDP SFR simultaneously receives and transmits at the same time, on the same frequency. it does this by utilising DMR’s two time slots concurrently.  The FDP SFR receives on one time slot, whilst transmitting on the other.

Advantages:

The SFR can be used on an existing LMRS single frequency license, without having to go to the expense of a specific repeater licence (assuming adherence to the license parameters).

A duplexer is not required, so you are not bound by the bandwidth of the duplexer.  This gives you frequency agility.

Ease of set-up – no tuned duplexer.

A very cost effective DMR Repeater Solution

Increased coverage on your current license, even at low power limits.

Can be used as a Mobile or Base Transceiver with the use of a microphone, or when in repeater mode – by using a handheld unit in close proximity as a ‘remote handheld device’.

Relays other DMR radio’s encryption, for maximum security.

A talk-around function is not required when the repeater is out of range, making operation much simpler.  The DMR radios will simply talk directly to each other instead (without having to separately activate talk-around or change the channel – like you would have to do with a conventional duplex repeater).

Operation:

The SFR should be used with DMR radios capable of Tier II DMO dual slot trunk (sometimes referred to as pseudo trunk). DMO trunk radios will use whichever time slot is available.

DMR still uses a form of FM transmission, and with FM – the strongest transmit signal generally owns the channel.  So the receiving radio will hear whichever signal is strongest, be it from the SFR or from the other radio.


Specifications:

  • Mode: DMR (Digital Mobile Radio Standard) and Analogue.
  • TDMA Dual Slots – Tier II Digital
  • DMO Trunk (pseudo) & RMO
  • Single Frequency Repeater Mode (DMR) / Transceiver Mode
  • Analogue integration inc CTCSS/DCS
  • Approved for LMRS use to 25W
  • Frequency Range:  400 – 480Mhz
  • 160 Channel – 16 channels per zone
  • Channel spacing: 12.5kHz digital / 25kHz & 12.5kHz analogue
  • Power Output: 25W/10W
  • Modulation: 4FSK –  7K60FXD  7K60FXE  16K0F3E  &  10K1F3E
  • Sensitivity: 0.25uV – 5% BER digital/12dB SINAD analogue
  • Vocoder:  AMBE+2
  • Weight: 1.5kg
  • Size:  175mm (L) x 175mm (W) x 63mm (H)
  • Nominal Operating Voltage:  13.8V negative ground
  • 5 Programmable Function Keys – 10 different settings
  • Relays digital encryption from other radios, for maximum security
  • Analogue Scrambler
  • Large LCD Screen for easier menu navigating
