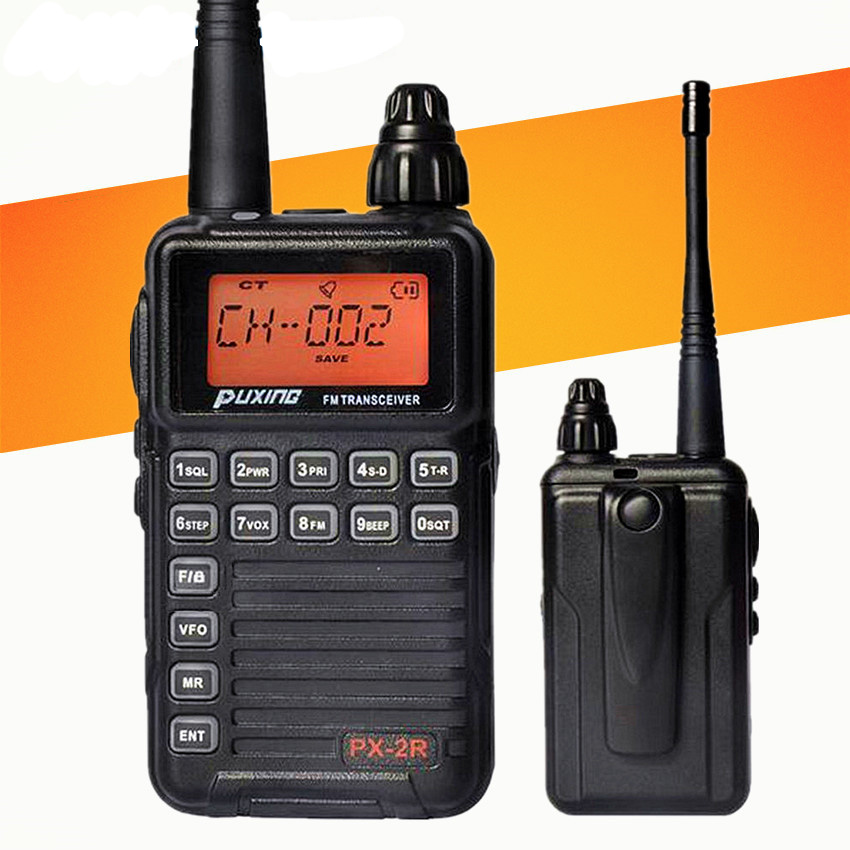

PX-2R Features
All channel scan and priority channel scan
Scan types :Carrier, time and search
Busy channel lock: carrier/QT/DQT VOX
sensitivity:0-9 levels adjustable
Transmitter power:High power and low power switchable
Squelch opening threshold: Receive field intensity should accurate
Led backlight: On/off/automatic
Beep set: Beep on/off
Keypad lock function: Manual/auto
optional Transmit limited: off-270 optional
Offset set:0-xxmhz optional (confirm the max offset according to the band after adjusting)
CTCSS and DCS setting Receive only Transmit only
50 CTCSS and 104 DCS +/-offset:+/-frequency optional
Offset step optional:12.5k/25k
Use Dot Segment to display on LCD
Select the LED/emergency call by programming software
Volume control knob to turn on/off the power
PC programming and store channel
Can use car charger DC 3.7V single li-ion battery compatible with mobile phone battery
MINI compact size 84*48*25 cm
Output power: 2w
Specifications: Frequency Range UHF 400-470MHz
Operating Voltage 3.6V
Operating Temperature -30c~+60c Battery 1100mAh(Li-ion)
Antenna Impedance 50 ohm
Dimension(without antenna&battery(L×W×H) 84*48*25(mm)
Weight(with antenna&battery) 200g
