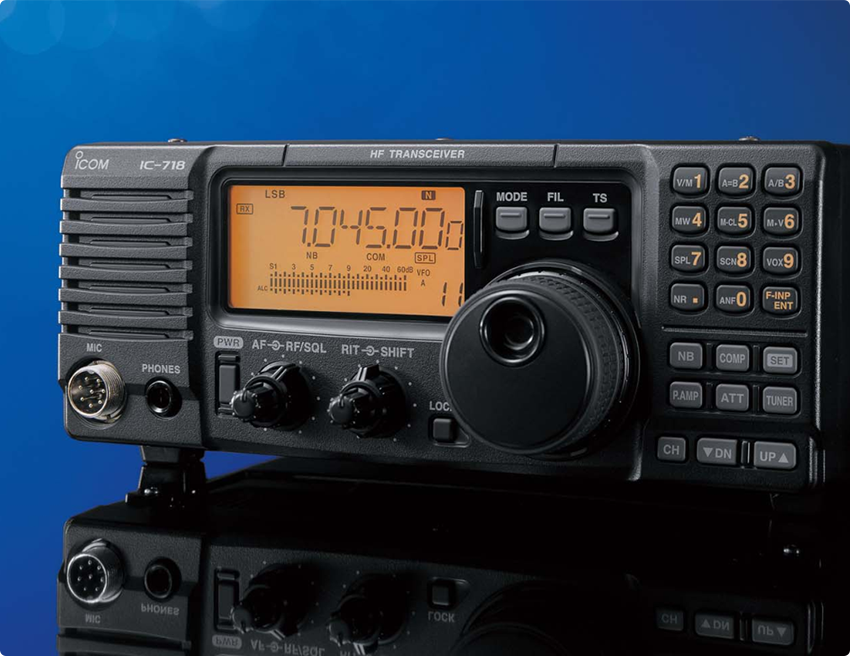

The HF bands allow you to communicate over long distances covering many km even to the other side of the world. With the superior performance found in the IC-718 such as wide dvnamic range, high C/N ratio, and full duty operation you will find making these contacts easy. Experience the combination of the latest RF and digital technology, along with the size and simplified operation. You will see the IC-718 will be the most practical rig you will ever own.

Front Mounted Loud Speaker

The IC-718 has a speaker mounted on the front panel. With the speaker facing the operator, audio sounds can be clearly heard without impediment during operation. It is no longer necessary to manually increase the volume to try and capture audio sounds.

Superior Basic Performance

The IC-718 has 0.03-29.999999 MHz* general coverage receive capability. A 4-element system is employed for the 1st receive mixer, providing superior receive IMD, especially from in-band near-by interfering signals. A well-designed double-conversion system to help minimize image and spurious responses for better signal fidelity, is also built-in. A newly designed PLL circuit has been adopted to improve C/N ratio characteristics. The combination of the 4-element system mixer and new PLL circuit allows superior basic performance as that of a commercial grade transceiver.

DSP Capability

The DSP includes the following to give you superior receiver quality in your shack, vehicle or during DX'pedition

Interference Rejection - IF Shift

To reject interference, the IC-718 has an IF shift function which shifts the center frequency of the IF passband electronically to reduce adjacent interference.

This feature compresses microphone audio input to increase average audio output level. The result is, that talk power is increased. The compression level is adjustable for your preference. This function is effective for long distance communication, or when propagation conditions are poor.

RF Gain Control

RF gain control is combined with the squelch control. The RF gain adjusts minimum response receiver gain, and ignores signals weaker than the pre-set level - providing pleasant stand-by, or scanning.

Ample CW Features

An electronic keyer with a variable dot/dash ratio (2.8:1 to 4.8:1) control is built-in. By simply connecting a paddle, easy CW operation can be made. The CW pitch and the key speed are also variable from 300-900 Hz, 6-60 wpm, respectively. Of course, full break-in capability is available with the adjustable break-in delay.

Flexible Filter Selection

An optional IF filter can be installed into the transceiver to suit your operating preference.

High Frequency Stability

When the optional CR-338 HIGH STABILITY CRYSTAL UNIT is installed, you get a very high frequency stability of ±0.5 ppm.

Selectable Antenna Tuner

Either the optional antenna tuner unit, AT-180 or AH-4 can be used with the IC-718 to suit your installing conditions, or operating style. Of course, the AH-4 control circuit is built into the IC-718.

Simple Operation

The IC-718 is equipped with a minimum number of switches and controls for superior feature selectability. The 10-key pad on the front panel for entering directly an operating frequency, or a memory channel number. The auto tuning steps function helps quick tuning is activate when turning the dial quickly. And the band stacking register is very convenient when changing operating bands.

Digital S/RF Meter

Built-in multi functional digital S/RF meter indicates signal strength level while receiving, and either transmit output power, ALC level or VSWR ratio while transmitting.

Optional Voice Synthesizer

A clear, electronically-generated voice announces operating frequency, mode and receiving signal strength level when the optional voice synthesizer unit, UT-102, is installed.

Other Features

• USB, LSB, CW, RTTY(FSK) and AM modes are built-in
• Level adjustable noise blanker
• RF attenuator and Pre-amplifier
• Variety of scanning function types
• Total 101 memory channels are available
• Hand microphone is supplied
